Products

 the original innovators of the standards used in the industry today

products we offer

TECHNOLAM’S manufacturing facilities include PLC-controlled continuous roll forming for our standard insulated panels. For Insulated sandwich panels as used in the cold storage industry, we manufacture panel lengths up to 14m long.

Our range of products include cold storage panels, structural insulated panels and doors, structural insulated roof panels, acoustic insulating panels, high temperature insulated panels. Manufacturing standards are to SABS and HACCP and EU standards.

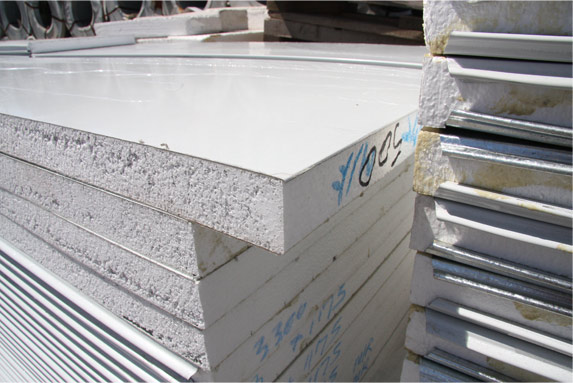

typical core materials

typical core materials

polystyrene

polyurethane

phenolic

rock Wool

honeycomb

typical skin materials

pre-coated steel

aluminium

stainless steel

galvanized steel

glass fibre

plywood

IBR

ABS plastic

carbon fibre

nutec

PVC

typical skin materials

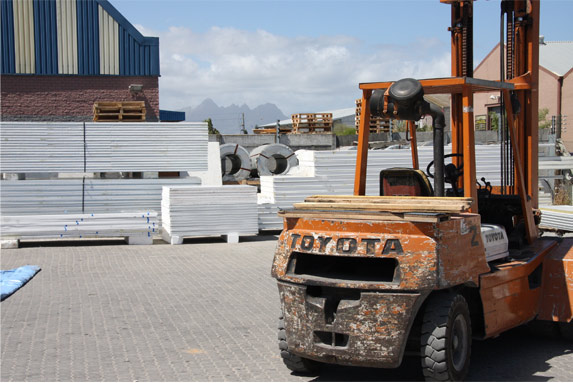

standard panel specifications

standard panel specifications

Thickness: 25mm-250mm

Length: Up to 14m

Cover Width: 1180mm with interlocking joints

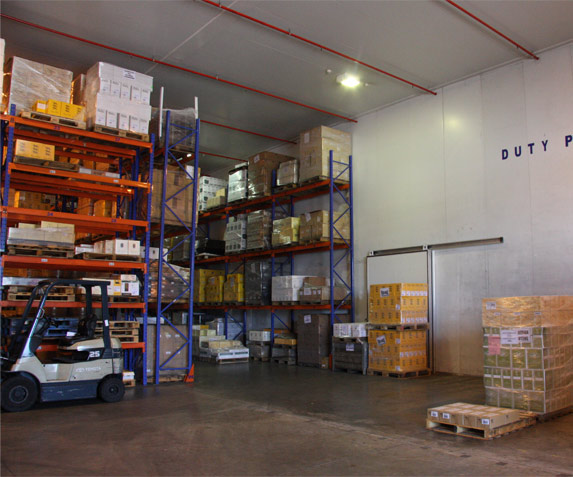

typical thicknesses for insulated panels applications

Thickness (mm)

75

100

125

150

200

Temperature (°c)

+15 to +5

+5 to 0

-5 to -15

-10 to -20

-20 to -30

typical thicknesses for insulated panels applications

request a call back

Would like more information about the services and products that Technolam provides? Fill in the form on the right with your details and we will call you back to discuss your requirements and needs. We are always available to assist!
